Embraer ERJ Airliner Spotting Guide


Embraer is a Brazil-based company that manufactures commercial, military, executive and agricultural aircraft. It competes worldwide with Canadian rival Bombardier for a position as the world's third-largest airplane maker after Boeing headquartered in the United States and Airbus located in Europe.

Embraer Commercial Aviation designs and assembles the ERJ Series and the Embraer E-Jet and E-Jet E2 Series.


Embraer ERJ Series

The Embraer Regional Jet (ERJ) carries from 30-50 passengers and includes these models:

Embraer Commercial Aircraft Length Passengers Range
ERJ-135 86' 5" 30 - 37 1,750nm
ERJ-140 93' 4" 44 1,650nm
ERJ-145LR 98' 0" 50 1,550nm
ERJ-145XR 98' 0" 50 2,000nm



Its "T-Tail" design include two turbofan jet engines mounted aft of the wings on the sides of the fuselage. Nearly 900 of the ERJ series has been built by Embraer to date.

Embraer ERJ-145 Spotting Guide

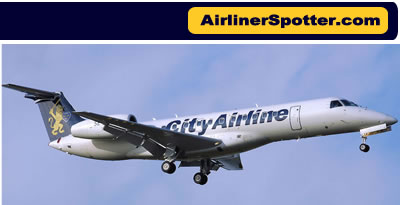

City Airline Embraer ERJ-135 regional jet with its twin jets mounted on the aft of the fuselage
City Airline Embraer ERJ-135

British Airways Embraer ERJ-145 regional jet
British Airways Embraer ERJ-145 regional jet

Embraer ERJ-145 regional jet of Luxair
Embraer ERJ-145 regional jet of Luxair

Comparing Embraer ERJ and Bombardier CRJ Regional Jets

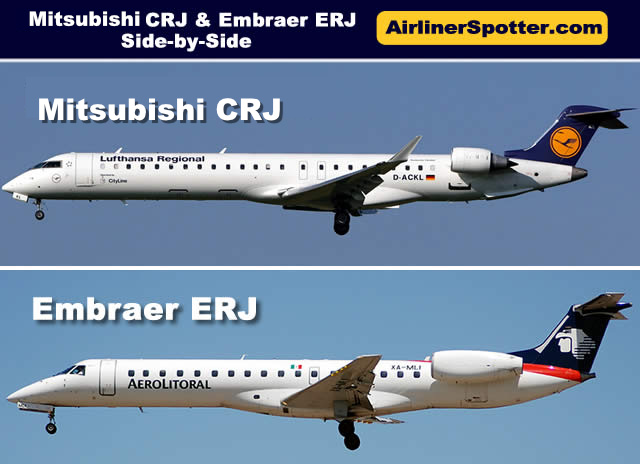

Shown below is a side-by-side fuselage view of a Bombardier CRJ regional jet (top) and an Embraer ERJ jet (bottom)
Chart showing a side-by-side fuselage view of a Bombardier CRJ regional jet (top) and an Embraer ERJ jet (bottom)

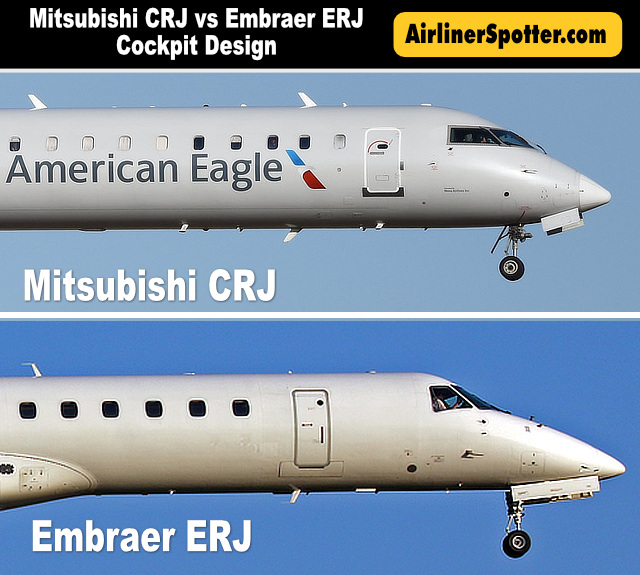

Comparison of the nose sections of the Bombardier CRJ (top) and Embraer ERJ (bottom) regional jets
Comparison of the nose sections of the Bombardier CRJ (top) and Embraer ERJ (bottom) regional jets

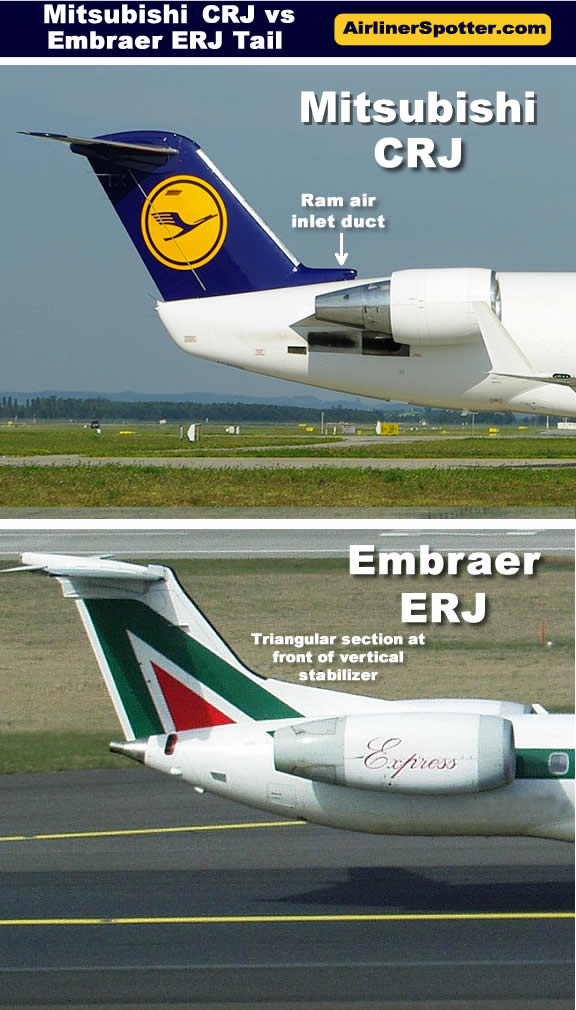

Comparison of the tail structures and shape of the engines of the Bombardier CRJ (top) and Embraer ERJ (bottom) regional jets.

The ERJ aircraft have a triangular section on the leading edge of the vertical stabilizer. The CRJ series has a ram air inlet duct at the bottom of the vertical stabilizer.

Comparison of the tail structures of the Bombardier CRJ (top) and Embraer ERJ (bottom) regional jets





More Information About Embraer Commercial Aircraft

Official website of Embraer Commercial Aviation

Regional Embraer Airliners Parked at Storage Facilities in the Desert

Commercial airliners have limited lifespans, even regional jets such as the Embraer ERJ series. Ultimately, they must be retired from service, stored in "airplane boneyards" or graveyards, and finally dismantled and scrapped.

Jetliners eventually reach end-of-life due to airframe wear and/or obsolescence. Some jetliners are temporarily taken off flying status, and must be stored in a environment that is conducive to preservation. Others are kept for spare parts for flying aircraft.

To protect airliners during their storage from wind and sun damage, engines and windows are tightly covered with white, reflective materials.

... and view photos of commercial airliner boneyards at www.AirplaneBoneyards.com




Embraer ERJ-135ER, registration N16501 (foreground), and others from Continental Express, in desert storage at the Kingman Airport in Kingman, Arizona, USA (Staff Photo)
View similar photos at AirplaneBoneyards.com
Embraer ERJ-135ER, registration N16501 (foreground), and others from Continental Express, in desert storage at the Kingman Airport in Kingman, Arizona, USA (Staff Photo
