The first derivative of the Airbus A320 was the stretched Airbus A321, also known as the Stretched A320A320-500 and A325.

The A320 was stretched by 22' 9" into the A321 via plugs in front of and behind the wing. The A321 became the longest fuselage member of the A320 family.

It is a narrow-body, single-aisle airliner, with 6-across seating. Typical 2-class seating capacity is 185 passengers, with a maximum of 236. The 321ceo has a range of 3,200 nm.

The A321 measures 146' 0" (44.51m) in length.

Airbus A321 Background and Development

The first flight of the Airbus A321 occurred in March of 1993, when the prototype, registration F-WWIA, flew with IAE V2500 engines; the second prototype, equipped with CFM56-5B turbofans, flew in May.

Lufthansa and Alitalia were the first to order the stretched Airbuses.

Today, the A321 is a major competitor as a replacement aircraft for the Boeing 757 which is no longer in production but remains a popular component in the fleet of many airliners. Its main competitor is the Boeing 737.

The A321 features an identical flightdeck to the smaller A319 and A320, and has the same type rating as those aircraft.

More than 100 operators have the A321 in service. American Airlines has the largest A321 fleet, followed by China Southern Airlines.

Airbus A321 Original Models

The two original models were the A321-100 and the A321-200, an extended range version of the -100.

The -200 has higher thrust engines and an additional fuel tank, resulting in an increase in range by 350 nautical miles. Externally, the two models are the same. Original models were referred to as A321ceo (Current Engine Option).

Air France A321
Air France Airbus A321, Registration F-GTAJ
AtlasJet Airbus A321
AtlasJet Airbus A321

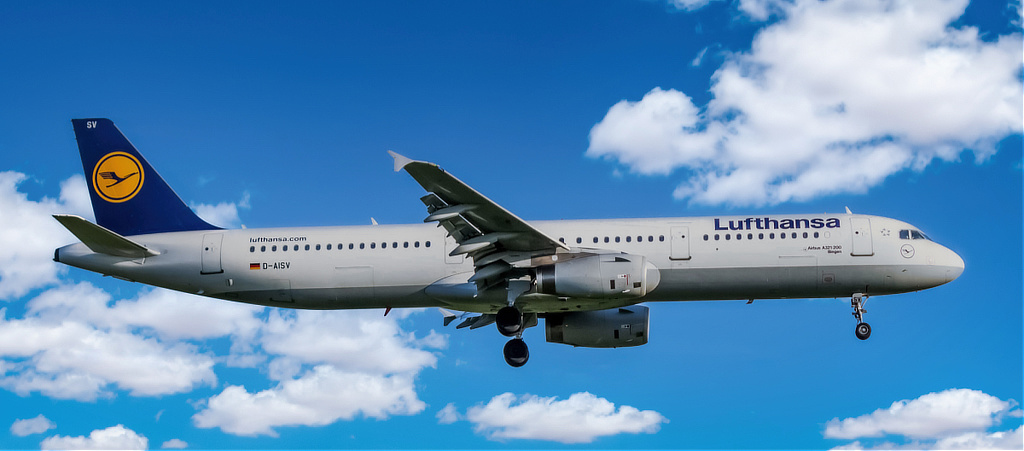

Lufthansa Airbus A321
Lufthansa Airbus A321
Scandinavian Airlines Airbus A321-200
Scandinavian Airlines Airbus A321-200



A321neo and A321LR

Airbus A321neoLR first flight on January 31, 2018
Airbus A321neo-LR first flight on January 31, 2018 (Photo courtesy of Airbus)

Newer versions include the A321neo (New Engine Option) and the A321LR (Long Range), and feature "sharklets" on the wing tips to improve performance. Some later model A321ceo aircraft also feature sharklets.

On the A321neo, Airbus expanded seating capacity with optimized use of cabin space, increased exit limits and a new cabin door configuration. This “Cabin-Flex” option increased the jetliner’s maximum capacity to 244 seats, while still providing high levels of passenger comfort.

The A321LR variant provides extended range for the A320neo Family’s longest fuselage version, able to fly routes of up to 4,000 nm with 206 passengers by utilizing extra fuel in three Additional Centre Tanks (ACTs).

Ideally suited to transatlantic routes, the A321LR allows airlines to tap into new long-haul markets that were not previously accessible with current single-aisle aircraft

The A321LR made its maiden flight on January 31, 2018.

A321XLR

Airbus A321xlr
Airbus A321XLR (Photo courtesy of Airbus)

Announced in 2019, the A321XLR is extending the single-aisle jetliner availability as Airbus’ next evolutionary step for the A321neo Family. Service entry for this extra long range airlilner is planned for 2023. It will offer even more range – up to 4,700 nm (8,700 km) – in a comfortable 2-class layout.

Configured with true long-haul full flat seats – or up to 244 passengers in single class layouts – the A321XLR cabin will benefit from the “Airspace by Airbus” interior, featuring a range of cabin elements providing benefits for passengers and differentiation for airlines.

With the A321XLR, the A320neo Family not only will share common cockpit ergonomics with the Airbus wide-body jetliners, but also will have a common cabin design language and the latest technology.

Read more ... Airbus launches longest range single-aisle airliner: the A321XLR


Photos of Airbus A321neo and ACF Models

Airbus A321neo (Photo by DELEHELLE Eric)
Airbus A321neo

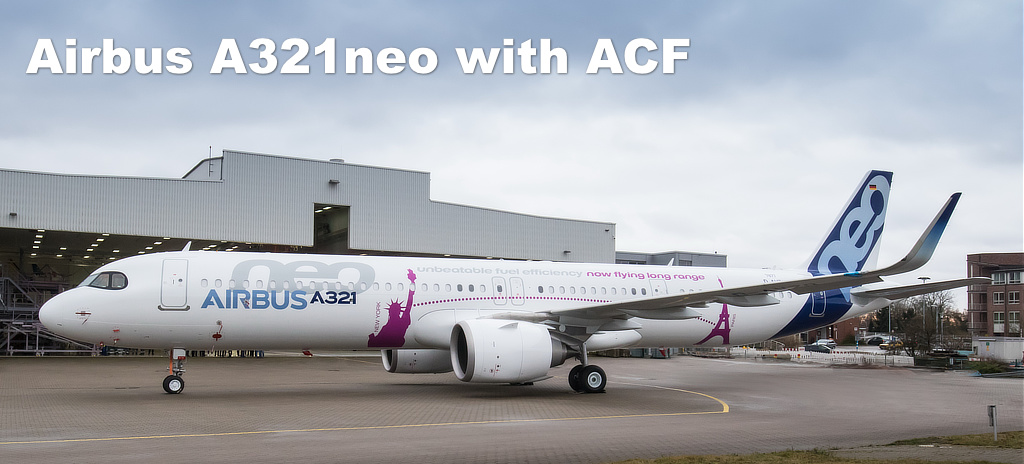

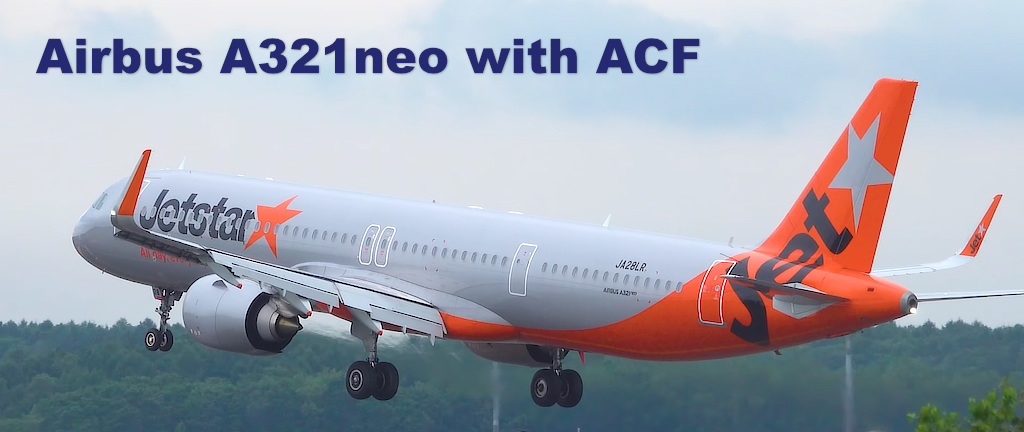

Shown below is the Airbus A321neo with Airbus Cabin Flex (ACF) Configuration

This configuration has door 2 removed, and replaced by a double-overwing exit. Also in this configuration, door 3 is moved further aft. This configuration is reported to allow a maximum passenger capacity of 240. Airbus and Saab are working on the design and manufacture of ACF components. (Image courtesy of the Saab Group)

Airbus A321neo with Airbus Cabin Flex (ACF) Configuration

Shown below is the rollout of the first Airbus A321neo ACF on January 5, 2018 (Image courtesy of the Airbus)

rollout of the first Airbus A321neo ACF on January 5, 2018

Airbus A321 Spotting Guide

The A321 has two engines under the wings, two dual-wheel main landing gear, four cabin doors evenly spaced along the fuselage, and the classic Airbus nose featuring the "notched" window.The A321 has two engines under the wings, two dual-wheel main landing gear, four doors along the fuselage, and the classic Airbus nose featuring the "notched" window.


The Airbus A321 features typical A320-series characteristics including the "rounded nose" and windshield straight across the bottom, and rear cockpit windshield window "notched" at the top corner.
The Airbus A321 features typical A320-series characteristics including the "rounded nose" and windshield straight across the bottom, and rear windshield window "notched"

The photo below of an Air France A321 shows its landing gear arrangement and wing design.
Photo of Air France A321 showing the landing gear arrangement and wing design

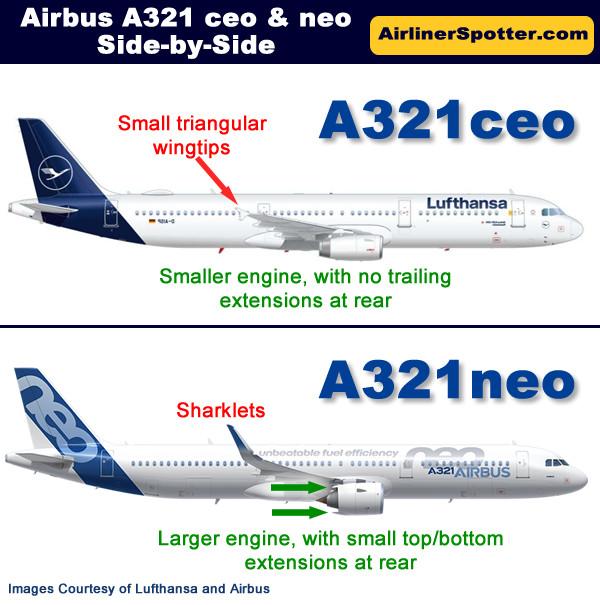

Shown below is a side-by-side comparison of the Airbus A321ceo and A310neo. The major visible, external differences lie in the engines and wingtips.

The A321ceo has smaller engines with no small top/bottom extensions at the rear of the engines as does the A321neo.

The A321ceo has small, triangular wingtips, and the A321neo has "sharklets".

In addition to being standard on A321neo aircraft, sharklets became available for newer-production A321ceo versions, and offered as an a retrofit solution on earlier-built A321-series aircraft.

Side-by-side comparison of the Airbus A321ceo and A321neo
Airbus A321ceo Engine
Airbus A321ceo Engine
Airbus A321neo Engine
Airbus A321neo Engine





Chart showing a side-by-side comparison of the
Airbus A321 (top) and the Boeing 757 (bottom).

Note that the A321 has two 2-wheel main gear assemblies, while the 757 has two 4-wheel landing gear.

Side-by-side comparison of the Airbus A321 and the Boeing 757



Airbus A321 Orders and Deliveries

Total Airbus A321 orders and deliveries are shown in the table below (through July 2023).

Airbus A321 Model Orders Deliveries
A321ceo 1,791 1,784
A321neo 5,259 4,150

Airliner Spotting Guide for the Airbus A320 Family

The Airbus A321 is part of a short-to-medium range, twin-engine, narrow-bodied A320 series.

The family includes the original A320, the stretched Airbus A321 (1994), the shortened A319 (1996), and the A318 (2003) (seen below).

For more information on the A320 family, visit the official website of Airbus Commercial Aircraft

Spotting guide for the Airbus A320 family of jetliners



More Airbus A321 Photos

American Airlines Airbus A321-231, Registration N150NN, at Dallas-Fort Worth International Airport (DFW). Delivered on November 14, 2015. Airbus Construction Number 6828. AA Fleet Number 882. (Staff Photo, July, 2021)
American Airlines Airbus A321-231 N150NN at Dallas-Fort Worth International Airport

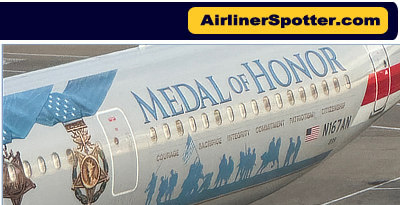

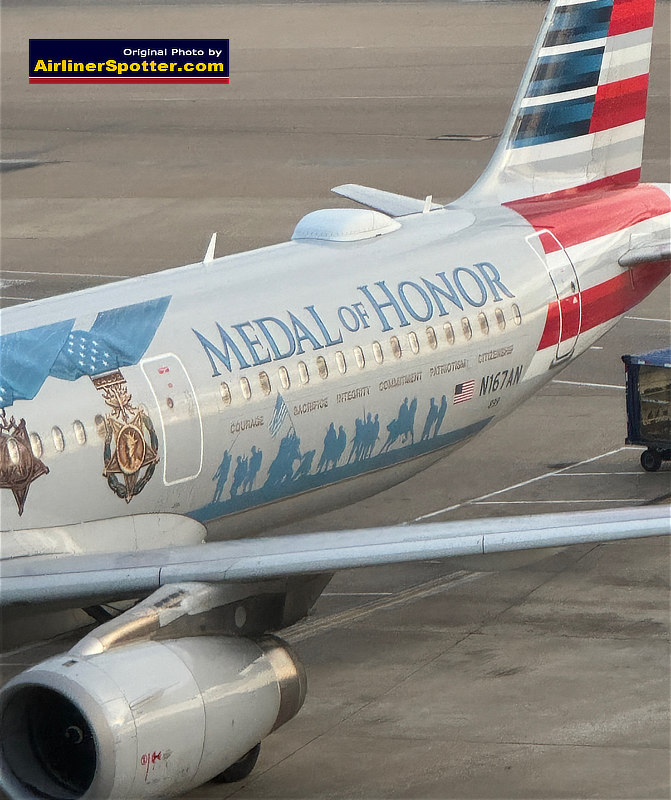

American Airlines Airbus A321-231, Registration N167AN
at Dallas-Fort Worth International Airport (DFW).
In special Medal of Honor livery: Courage, Sacrifice, Integrity, Commitment, Patriotism, Citizenship
(Staff Photo, July 5, 2024)
American Airlines Airbus A321-231, Registration N167AN, in special Medal of Honor livery at Dallas-Fort Worth International Airport (DFW). (Staff Photo, July 5, 2024)

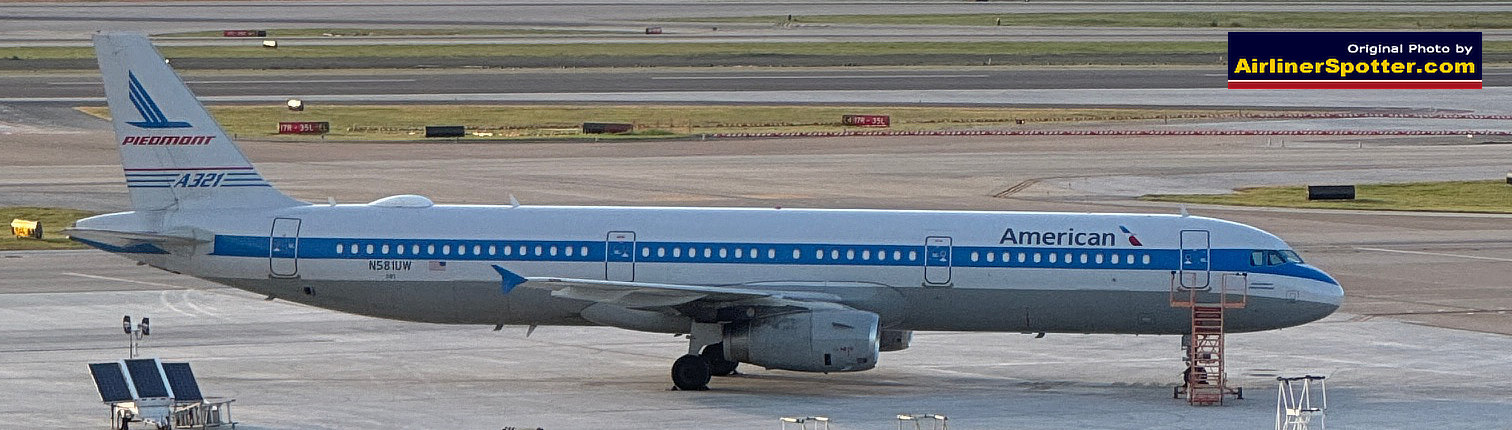

American Airlines Airbus A321-231, Registration N581UW
at Dallas-Fort Worth International Airport (DFW).
In Piedmont Airlines livery (Staff Photo, July 5, 2024)
American Airlines Airbus A321-231, Registration N581UW in Piedmont Airlines livery at Dallas-Fort Worth International Airport (DFW). (Staff Photo, July 5, 2024)

A321-211 G-TCDY of Thomas Cook Airlines (Photo by DELEHELLE Eric)
A321-211 G-TCDY of Thomas Cook Airlines

Airbus A321 of Onurair, Registration TC-OBZ (Photo by DELEHELLE Eric)
Airbus A321 of Onurair, Registration TC-OBZ
Airbus A321 XU-722 of Sky Angkor Airlines (Photo by DELEHELLE Eric)
Airbus A321 XU-722 of Sky Angkor Airlines

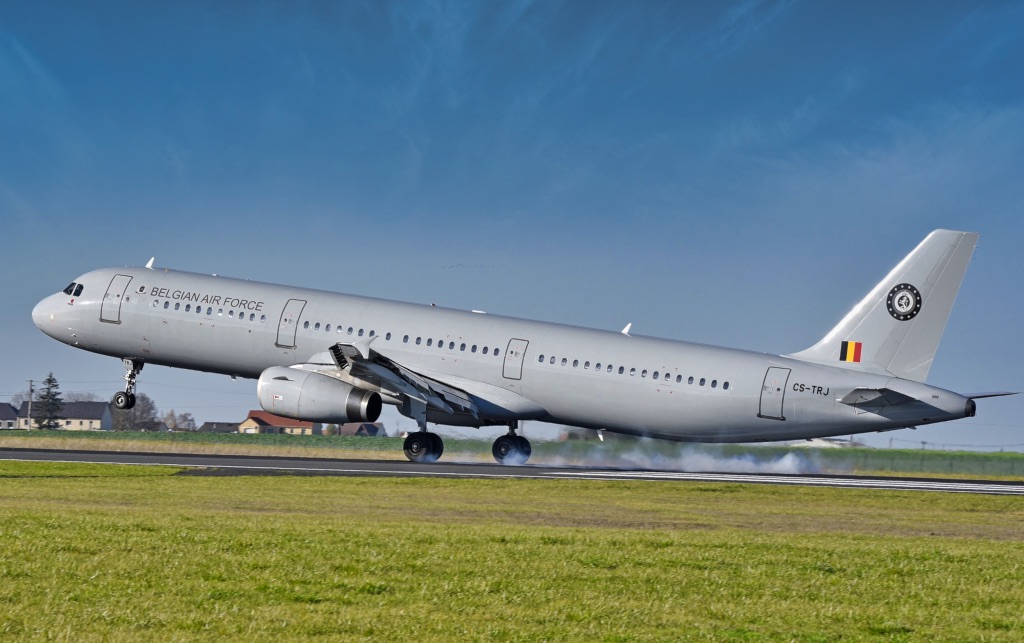

Airbus A321 CS-TRJ of the Belgian Air Force (Photo by DELEHELLE Eric)
Airbus A321 of the Belgian Air Force
